Automatic Roll to Roll Flat Hot Foil Stamping Machine With Web Guiding
Description of details
This machine is our company latest professional design and development ,to improve the manual bronzing working status of paper(red envelopes, paper packaging, invitations), plastic, cloth fabric, non-woven industry , it is a new automatic feeding, bronzing, coiling device to eliminate the original manual process semi automatic production equipment, greatly improves the safety and production efficiency, suitable for roll to roll stamping.
This machine can be used for raw materials as below: laminating non-woven, non-woven fabrics, paper roll films, BOPP, PET, roll feeding and rewinding, obviates manual bronzing edition, placed in the formation process, reduce operator risk, is 20 times that of manual gilding on speed, greatly improve work efficiency, reduce the cost .
Characteristic
The machine with touch screen and PLC automatic operation closed-loop control, the control part and spare parts imported professional components, ensure the equipment with high reliability and stability. And has the advantages of convenient operation, electric eye tracking automatic stamping, automatic feeding, discharging automatic correction, automatic tension, fault automatic stop and remind function is the ideal automatic equipment of the industry.
Advantages
1,Configuration of magnetic powder tension, automatic correction.
2,Automatic meter, no material automatic alarm.
3,Requency control ,keep accelerating stable operation.
4,Automatic feeding, unwinding adopts photoelectric deviation correction system, taper tension control material from heavy to light, automatic adjustment.
5,Feeding process in automatic hot pressing corresponding bronzing template, stamping part of the uniform, neat, symmetrical.
6,Roll feeding adopts gas expansion shaft structure, easy loading and unloading operations, pneumatic automatic unloading
Main Technical Data
| Model | WX-T1300 | More Wide Can Be Customized |
| Fabric Thickness | 80-150GSM | More thin or thick tell us please |
| Max diameter of feeding roller | 1000MM | |
| Feeding Width | 600-1200MM | More Wide Can Be Customized |
| Power Supply | 380V | |
| Total Power | 27.7KW | |
| Max Stamping Speed | 3200 times/h | Platen Hot Stamping Process |
| Overall Size | 5200X2000X1900MM | |
Electrical configuration list
| No | Item | Model | Quantity | Brand | Origin | Remark |
| 1 | Main system | Dvp40eHoot3 | | TAIDA | TAIWANG | |
| 2 | PLC | Dvp-Bo7515 | 1 | TAIDA | TAIWANG | |
| 3 | Feeding roll brake | F2-12A-1 | 2 | QIANDAI | TAIWANG | |
| 4 | Feeding motor | Y271M2-4 | 1 | DASU | SHANGHAI | |
| 5 | Tracking photoelectric switch | LCT5W-2N1116 | 3 | SICK | GERMANY | |
| 6 | Feed sensor | LM12T45-4N3K | 4 | Autonicks | KREAO | |
| 7 | Hydraulic system | | 1 | NIKKEN | JANPA | |
| 8 | Drag motor | 130BYG350A | 4 | SONGYANG | CHINA | |
| 9 | Electric switch | CA3P | Several | Siemens | GERMANY | |
| 10 | Electric current | Compact NS 80 | Several | Schneider | FRANCE | |
| 11 | Tension system | F2-12A-1 | 3 | MITSUBSHI | JANPA | |
| 12 | Recitification photo electric | KS-W23 | 2 | WEILUN | TAIWAN | |
| 13 | Recitification motor | 110TDY—115 | 2 | WEITE | CHINA | |
Spare parts and tools
| No | Specification | Quantity | Unit | Remark |
| 1 | SCM-YQ Big oil gun | 1 | Pcs | |
| 2 | Inner hexagon spanner | 1 | Set | |
| 3 | Safety wire | 10 | Pcs | |
| 4 | Monkey wrench | 1 | Pcs | |
| 5 | Phillips screwdriver | 1 | Pcs | |
| 6 | Converter specification | 1 | Book | |
| 7 | Deviation correction controller specification | 1 | Book | |
| 8 | Up round knife | 2 | Pcs | |
| 9 | Down round knife | 2 | Pcs | |
| 10 | Jump ring | 2 | Pcs | |
| 11 | Spring | 2 | Pcs | |
| 12 | AB glue | 1 | Pcs | |
| 13 | 24v relay | 1 | Pcs | |
| 14 | Electromagnetic valve | 1 | Pcs | |
| 15 | Switch | 2 | Pcs | |

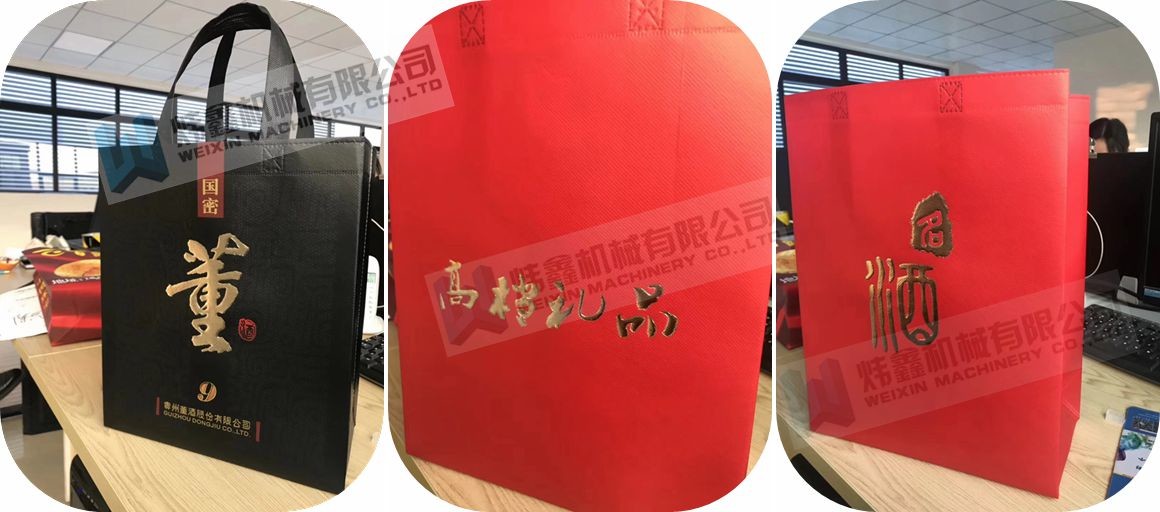

Non Woven Hot Stamping Sample
